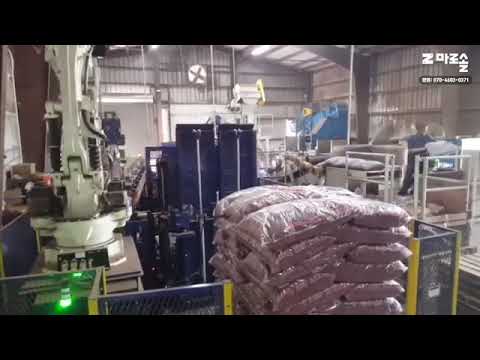

This solution utilizes the KAWASAKI CP180L, a specialized palletizing robot, to automate the process of stacking heavy bags of agricultural soil mulching materials onto pallets.
By automating the high-payload palletizing process, this system significantly increases operational speed while protecting workers from musculoskeletal disorders associated with repetitive heavy lifting.
Components
- Robot
Robot: KAWASAKI CP180L
Type: 4-axis articulated palletizing robot
Payload: 180kg
Reach: 3,255mm
Repeatability: ±0.5mm
Weight: 1,600kg
Workflow
- STEP 1.
- Feeding of the empty pallet.
- STEP 2.
- Feeding of the bags (workpieces).
- STEP 3.
- High-speed picking of the bags.
- STEP 4.
- Interlocked (cross) stacking of bags layer by layer on the pallet for stability.
- STEP 5.
- Discharge of the fully loaded pallet.
