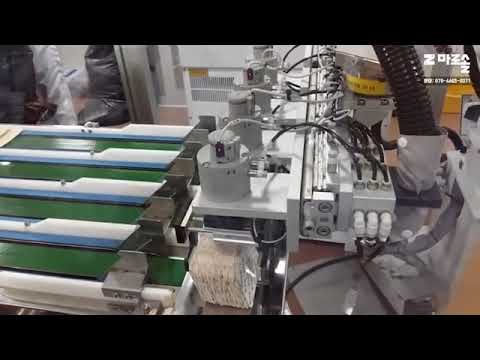

This automation solution utilizes the YASKAWA MCL20 to sort and transfer medicated patches (pain relief patches) within a cleanroom environment.
The system performs precise counting and neat alignment—tasks previously handled by human workers—with human-like dexterity. By simultaneously processing four batches, the system significantly increases operational speed and overall productivity.
Components
- Robot
Robot: YASKAWA MCL20
6-axis articulated industrial robot.
Cleanroom Rating: Class 3 (Optimized for pharmaceutical and medical environments)
Payload: 20kg
Reach: 1,658mm
Weight: 280kg
Repeatability: ±0.08mm
Workflow
- STEP 1.
- Counting & Loading: The quantity of patches is counted and loaded onto the conveyor.
- STEP 2.
- Primary Alignment: Patches undergo initial alignment on the conveyor system.
- STEP 3.
- Secondary Alignment: The YASKAWA MCL20 robot performs precision secondary alignment.
- STEP 4.
- Multi-Batch Transfer: The robot picks up four bundles of patches simultaneously and transfers them to the discharge conveyor.
