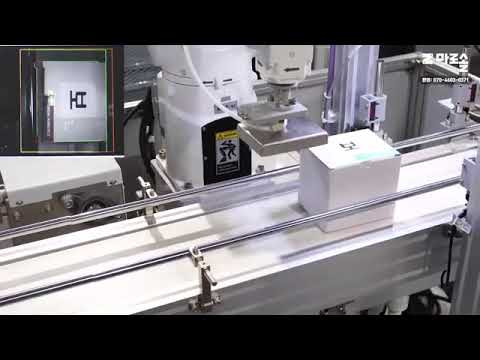

This logistics automation solution utilizes the Hyundai HH7 robot, the HRVision 3D vision system, and conveyor tracking technology to automate the manual task of recognizing text on boxes and aligning them according to the text orientation.
By leveraging the high-speed processing of HRVision, the system can identify product images while in motion. Combined with conveyor tracking, the robot can pick and align moving objects without stopping the belt, ensuring a seamless and highly efficient workflow.
Components
- Robot
Robot: Hyundai HH7
6-axis articulated robot, payload 7kg, reach 932mm, weight 42kg, repeatability ±0.03mm.
Vision System: Hyundai HRVision
High-speed vision solution capable of real-time OCR (Optical Character Recognition) and orientation detection.
Tracking Technology: Integrated conveyor tracking that synchronizes robot motion with the conveyor speed.
Workflow
- STEP 1.
- Detection: As products enter, HRVision recognizes the text and determines the required alignment direction.
- STEP 2.
- Synchronized Picking: The robot tracks the moving box along the conveyor and performs the pick "on-the-fly."
- STEP 3.
- Alignment: The robot rotates the box to the correct orientation and places it in the designated alignment zone or discharge belt.
