This solution is a pallet wrapping process utilizing OMRON’s LD-250.
OMRON’s LD-250 mobile robot is an Autonomous Mobile Robot (AMR) that creates its own maps and navigates along optimal paths in real-time, adapting to constantly changing site conditions. With a generous payload capacity of 250kg, the LD-250 is perfectly suited for automating pallet wrapping tasks, which often carry risks of safety accidents.
Components
- Robot
Robot OMRON LD-250: Max Payload: 250kg; Size: L963 x W718 x H383 mm; Weight: 148kg; Max Speed: 1.2m/s; Max Rotation Speed: 120°/s; Max Slope: < 1:12; Stop Accuracy: ±100mm; Running/Charging: 13/4 hr; Operating Temp: 5~40°C; Battery Life: 2,000 cycles; Rating: IP 20
Workflow
- STEP 1.
- LD-250 receives the operational signal.
- STEP 2.
- Moves to the pallet loading location.
- STEP 3.
- Loads the pallet.
- STEP 4.
- Navigates to the designated destination.
- STEP 5.

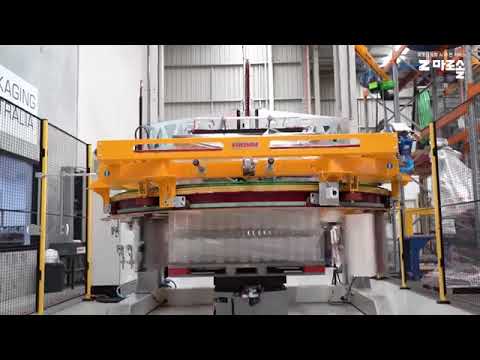

- Performs wrapping using the wrapping machine.
- STEP 6.
- Moves to the unloading location.
- STEP 7.
- Unloads the pallet.
- STEP 8.
- Repeats the previous steps
