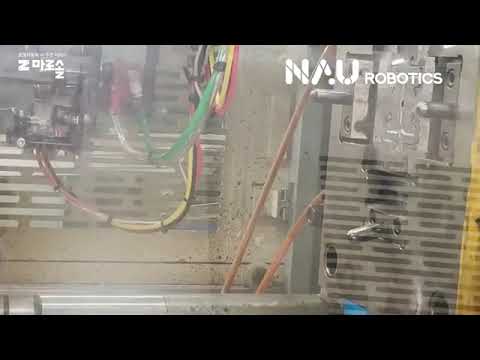

This application is a solution that performs injection molding gate cutting and vision inspection using an extraction robot.
In plastic injection automation, extraction robots do more than just retrieve parts; they handle post-processing tasks such as gate cutting and finishing. This solution goes beyond simple cutting by integrating vision inspection into the workflow.
Components
- Robot
Extraction Robot; Injection Molding Machine; Finishing Nipper; Rotating Jig; Vision System
Workflow
- STEP 1.
- Extraction robot retrieves the part from inside the injection molding machine.
- STEP 2.
- Gate cutting is performed using a nipper.
- STEP 3.
- Part is rotated using the rotating jig.
- STEP 4.
- Gate cutting is performed on the opposite side.
- STEP 5.
- Vision inspection device checks for product defects and short shots.
- STEP 6.
- Repeat the previous process
